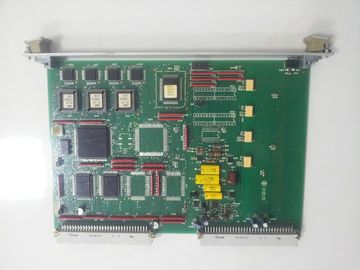

Single Layer FR-4 Electronic PCB Board Assembly Service For PCB & PCBA in Medical and Health Field
Our services for the PCB Assembly
-
Re-layout for shortening the board size
-
Bare pc board fabrication
-
SMT/BGA/DIP assembly
-
Full component procurement or the substitute components sourcing
-
Wire harness and cable assembly
-
Metal parts, rubber parts and plastic parts including mold making
-
Mechanical, case and rubber molding assembly
-
Functional testing
-
Repairs and inspection of the sub-finished / finished goods
Our capabilities for the PCB Assembly
|
Stencil Size Range
|
736 mm x 736 mm
|
|
Min. IC Pitch
|
0.30 mm
|
|
Max. PCB Size
|
410 mm x 360 mm
|
|
Min. PCB Thickness
|
0.35 mm
|
|
Min. Chip Size
|
0201 (0.6 mm X 0.3 mm)
|
|
Max. BGA Size
|
74 mm X 74 mm
|
|
BGA Ball Pitch
|
1.00 mm (Min) / F3.00 mm (Max)
|
|
BGA Ball Diameter
|
0.40 mm (Min) /F1.00 mm (Max)
|
|
QFP Lead Pitch
|
0.38 mm (Min) /F2.54 mm (Max)
|
|
Frequency of Stencil Cleaning
|
1 time / 5 ~ 10 Pieces
|
Our capabilities for handling the Bare PC Board fabrication
Fabrication data inputs: Gerber data RS-274-X or RS-274-D with aperture list and drill files, design file with Protel, PAD2000, POWERPCB, ORCAD
Layers 2-30 L
Material Types Fr-4, Fr-5, High-Tg, Halogen Free, Rogers,
Isola, Taconic, Arlon, Teflon, Aluminum Based
Max. Panel Dimension 39000mil * 47000mil / 1000mm * 1200mm
Outline Tolerance ±4mil ±0.10mm
Board Thickness 8mil-236mil / 0.2mm-6.0mm
Board Thickness Tolerance ±10%
Dielectric Thickness 3mil-8mil / 0.075mm-0.20mm
Min. Track Width 3mil / 0.075mm
Min. Track Space 3mil / 0.075mm
External Cu Thickness HOZ-6OZ / 17um~210um
Internal Cu Thickness HOZ-6OZ / 17um~210um
Drilling Bit Size ( CNC ) 6mil-256mil / 0.15mm-6.50mm
Finished Hole Dimension 4mil-236mil / 0.1mm—6.0mm
Hole Tolerance ±2mil / ±0.05mm
Hole Position Tolerance ±2mil / ±0.05mm
Laser Drilling Hole Size 4mil / 0.1mm
Aspect Ration 12:1
Solder Mask Green, Blue, White, Black, Red, Yellow, Purple, etc.
Min Solder mask Bridge 2mil / 0.050mm
Plugged Hole Diameter 8mil-20mil / 0.20mm-0.50mm
Impedance Control V-scoring ±10%
Surface Finishing HASL, HASL(lead Free), Immersion Gold, Immersion Tin,
Immersion Silver, OSP, Hard Gold( up to 100u”)
-
UL and TS16949: 2002 marks
-
Special requirements: buried and blind vias, impedance control, via plug, BGA soldering and gold finger
-
Profiling: punching, routing, V-cut and beveling
-
OEM services to all sorts of printed circuit board assembly as well as electronic encased products are provided
Our manufacturing experience includes, but is not limited to:
|
Note Book fields
|
CHARGER BOARD
|
INVERTER
|
POWER CPU
|
LVDS CARD
|
IR BOARD
|
|
LCD MOTHERBOARD
|
LED BOARD
|
RAM CARD
|
DATA BOARD
|
BATT BOARD
|
|
DVR MOTHERBOARD
|
USB BOARD
|
CARD READER
|
AUDIO BOARD
|
ISDN MODEN
|
|
PC fields
|
2.5 inch HDD
|
PC/MAC FDD
|
DOCKING
PORT
|
PORT REPILICATOR
|
PCMCIA CARD
|
|
3.5 inch HDD
|
SATA HDD
|
ADAPTER
|
DVD ROM
|
SSD
|
|
Telecom fields
|
DVBT.ATSC TV
|
GPS UNIT
|
CAR GPS UNIT
|
ADSL MODEN
|
3.5inch DVB-T RECEIVER
|
|
Audio & Video fields
|
MPEG 4 PLAYER
|
KVM SWITCH
|
E-BOOK READER
|
HDMI BOX
|
DVI BOX
|
|
Electronic Security fields
|
LCD TV MOTHERBOARD
|
DVR MOTHERBOARD
|
CCD BOARD
|
IP CAMERA
|
CCTV CAMERA
|
|
Health
& Medical fields
|
DIGITAL TEMS UNIT
|
EAR THERMOMETER
|
BLOOD GLUCOSE TEST METERS
|
BODY FAT MONITOR
|
DIGITAL BLOOD PRESSURE MONITOR
|
|
LED Application fields
|
LED AUTO LAMP
|
LED ROPE LIGHT
|
LED BULB
|
OUTDOOR
LED DISPLAY
|
PROJECTION LIGHTING
|
|
Test Instrument fields
|
OSCILLOSCOPE
|
POWER SUPPLY
|
L.C.R. METER
|
LOGIC ANALYZER
|
MULTIMETER
|
|
Consumer Electronics fields
|
SENSORS BOARD
|
DRIVER BOARD
|
USB DVIVER BOARD
|
BAR-CODE PRINTER
|
MP3 PLAYER
|
|
SOLAR PANEL MODULE
|
PEN TABLET
|
USB HUB
|
USB CARD READER
|
USB FLASH DRIVE
|
Get a quote from Fortunemount for your custom (OEM ) product inquiry
In order to estimate an accurate quotation, the list below represents the minimum information we need from you.
-
The Complete Data of the Gerber Files for the Bare PC Board
-
Electronic Bill of Material/ Parts list detailing manufacturer's part numbers, quantity used and component references.
-
Please state whether we can use alternative parts for passive components
-
Assembly Drawing(s)
-
Functional Test Time Per Board
-
Quality Standards Required
-
Sample (if possible)
-
Volume Requirements
-
Date the quotation needs to be submitted
Welcome the small order.
E-mail us to find out how we can fill your requirements
