Kaku Dewan PCB

  • Presisi tinggi Kaku Dewan PCB pemasok
  • Presisi tinggi Kaku Dewan PCB pemasok

pengantar


Kaku fleksibel papan sirkuit tercetak adalah papan menggunakan kombinasi teknologi papan fleksibel dan kaku dalam sebuah aplikasi. Kebanyakan papan fleksibel kaku terdiri dari beberapa lapisan sirkuit substrat yang fleksibel yang melekat pada satu atau lebih kaku papan eksternal dan / atau internal, tergantung pada desain aplikasi. Substrat fleksibel dirancang untuk berada dalam keadaan konstan fleksibel dan biasanya dibentuk menjadi kurva tertekuk selama manufaktur atau instalasi.

Desain fleksibel kaku lebih menantang daripada desain lingkungan papan kaku khas, seperti papan ini dirancang dalam ruang 3D, yang juga menawarkan efisiensi ruang yang lebih besar. Dengan mampu merancang dalam tiga dimensi yang kaku desainer fleksibel dapat memutar, melipat dan menggulung substrat papan fleksibel untuk mencapai bentuk yang diinginkan untuk paket aplikasi akhir ini.


Jenis bahan


FR-4, CEM-1, CEM-3, IMS, TG Tinggi, High Frequency, Halogen Gratis, dasar Aluminium, logam dasar inti

Pengobatan permukaan


HASL (LF), Flash emas, ENIG, OSP (lead free kompatibel), tinta karbon,
Peelable S / M, Immersion Ag / Tin, Gold jari plating, ENIG + Emas jari


Proses produksi

Apakah memproduksi prototipe atau produksi fleksibel kaku jumlah yang membutuhkan skala besar fabrikasi kaku fleksibel PCB dan perakitan PCB, teknologi ini terbukti baik dan dapat diandalkan. Bagian PCB fleksibel sangat baik dalam mengatasi ruang dan berat masalah dengan derajat tata ruang kebebasan.

Pertimbangan cermat solusi flex-kaku dan penilaian yang tepat dari pilihan yang tersedia pada tahap awal dalam tahap desain PCB fleksibel kaku akan kembali manfaat yang signifikan. Hal ini penting kaku fleksibel PCB FABRICATOR terlibat pada awal proses desain untuk memastikan desain dan bagian fab keduanya dalam koordinasi dan mempertimbangkan variasi produk akhir.

Tahap manufaktur fleksibel kaku juga lebih kompleks dan memakan dari fabrikasi papan kaku waktu. Semua komponen fleksibel perakitan fleksibel kaku memiliki sama sekali berbeda penanganan, etsa dan solder proses dari yang kaku papan FR4.


Aplikasi


LED, telekomunikasi, aplikasi komputer, pencahayaan, mesin permainan, kontrol industri, listrik, mobil dan high-end elektronik konsumen, ect.a

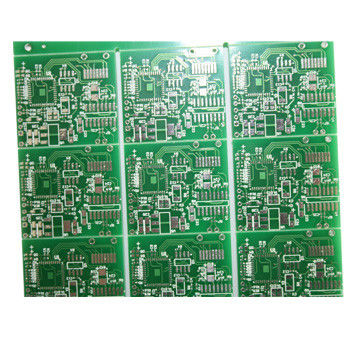

4 Layer Rigid PCB Board

4 Layer Rigid PCB Board
4 Layer Rigid PCB Board 4 Layer Rigid PCB Board

Gambar besar :  4 Layer Rigid PCB Board

Detail produk:

Place of Origin: ShenZhen
Nama merek: BangBane
Sertifikasi: UL,SGS,ROHS,ISO
Model Number: mkpcb17015
Detil Deskripsi produk
Menyoroti:

electronics prototyping board

,

pcb prototype manufacturer



4 Layer Rigid PCB Board Manufacturing

1.4 layer Rigid PCB Board Layout/Fabricate

2.UL, SGS, Rohs Certificate

3.Competitive Price, High Quality, Fast delivery

4.OEM Service are welcome, E-test, Testing Service

 your single point of contact for all of your raw materials, parts, and pcb assembly, also offers:

- Contract Manufacturing
- Engineering Services
- PCB Design & Assembly
- Product Design
- Prototyping
- Cable and Wire Assemblies
- Plastics and Molds



1.Product process capability:



1

Layer

Single Sided, 2-30 Layer

2

Board Thickness

0.21mm~7.00mm

3

Board Material

FR-4, CEM-1, CEM-3, High TG, FR4 halogen Free, Rogers, Aluminum

4

Max.finished board size

580*900mm

5

Min.drilled hole size

3mil(0.075mm)

6

Min.Line width&spacing

3mil(0.075mm)

7

Surface finish/treatment

HASL/HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating.

8

Copper Thickness

0.5oz-7oz

9

Solder Mask Color

Green/Yellow/Black/White/Red/Blue

10

Copper Thickness In Hole

>25.0 um(>1mil)

11

Inner packing/Outer packing

Vaccum Plastic bag/Standard carton packing

12

Hole/Shape tolerance

PTH: ±0.076 NPTH: ±0.05/±0.13

13

Cerification

UL.ISO9001.ISO14001.SGS.ROHS

14

Special requirements

Buried and blind vias+Controlled impedance+BGA

15

Profilling

Punching.Routing.V-CUT.Beveling

16

Provides OEM Services to all sorts of printed circuit board assembly as we as electronic encased products.



All of the above description is to demonstrate the ability of our factory, if you have specific requirements, please contact us.



2.Lead time


Samples:4 to 5 days
Mass produce:7 to 15 days depend on your PCB orders



3.Payment Terms



T/T, WESTUNIION Accepted



4.produce capacity


250000 Squre meter per year
