Fleksibel Dewan PCB

  • Presisi tinggi Fleksibel Dewan PCB pemasok
  • Presisi tinggi Fleksibel Dewan PCB pemasok
  • Presisi tinggi Fleksibel Dewan PCB pemasok
  • Presisi tinggi Fleksibel Dewan PCB pemasok

Pengantar:

PCB Flex, juga dikenal sebagai sirkuit cetak fleksibel atau elektronik fleksibel, memberikan pilihan yang lebih besar untuk desainer dan insinyur saat perakitan sirkuit elektronik.

Mereka dibangun dari bahan plastik fleksibel, kinerja tinggi, biasanya polimida, yang memungkinkan papan untuk menekuk atau "fleksibel" saat digunakan. Fleksibilitas ini membuka mereka untuk digunakan dalam berbagai aplikasi.

OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper VO board Conventional plates

OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper VO board Conventional plates
OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper VO board Conventional plates

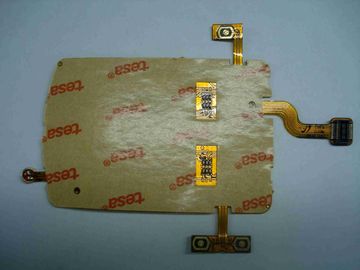

Gambar besar :  OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper VO board Conventional plates

Detail produk:

Place of Origin: China
Nama merek: Winnal
Model Number: CE, ROHS, UL
Detil Deskripsi produk
Menyoroti:

flex board pcb

,

FPC

,

Flexible board

OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper VO board Conventional plates

Electrical Test 0.1-0.25mm Thickness OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper



Quick Detail:

HAL/ENIG Surface finishing

Custom Layer :1 Layer ,2 Layer ,Layer, Layer

0.1-0.25mm Thickness

FR4 Material

0.5-3oz  Copper







Description:

Layer

1-6

Material

Polyimide

Thickness

0.1-0.25mm

Surface finishing

HAL/ENIG

Copper

0.5-2oz

Test

Electrical Test



Applications:


Flexible board can be used for all kinds of electrical products, such as computer, mobile, led and so on. It’s widely used in various of industries in the world. We have been FPC and assembly business for ten years and provide different customized FPC to many countries all over the world. Welcome to contact us for further news.



Competitive Advantage:

1, Excellent quality control service

2, Competitive price

3, Quick production time

4, PCB design/production/test integrated service



Specifications:

Product Technical Parameter

Basic technology

Parameter

Single/Double sided

Multilayer

Number of Layers

1-2

4~6

Copper Thickness

0.25~3.0OZ

0.5~3.0OZ

Base Board Thickness

0.1~0.3mm

0.1~0.3mm

Incombustibility

94V-0

94V-0

Peelable resistance

12.3N/cm

12.3N/cm

Twist

≤0.5%

≤0.5%

Insulation resistance

≥1011Ω

≥1011Ω

Test voltage

10-300V

10-300V

Finished board area

560×970mm

560×970mm

Min. Line Width and Spacing

0.1/0.1mm

0.1/0.1mm

Copper thickness in hole

≥25.0um

≥25.0um

Mini. pad diameter

Inner layer



0.05mm

Out layer

0.076mm

0.076mm

Mini. Hole Diameter

0.25mm

0.20mm

Hole tolerance

PTH

±0.076mm

±0.076mm

NPTH

±0.05mm

±0.05mm

Hole location tolerance

±0.076mm

±0.05mm

profile tolerance

Routing

±0.1mm

±0.1mm

Punching

±0.13mm

±0.13mm

Solder mask bridge ability

≥0.1mm

≥0.075mm

Solder mask rigidity

6H

6H

Solderable test

245℃     5 second

245℃     5 second

Thermal cycling ability

288℃     10 second

288℃     10 second

Surface Finishing

OSP, HAL, HAL Lead-free, Immersion gold , Gold plating, Rosin, Gold

finger, Immersion Tin and so on

Qaulity standard

IPC-A-600F   IPC-ML-950

Sample standard

STD-105E-Ⅱ
