Majelis Dewan PCB

pengantar

PCB Majelis adalah sebuah proses yang membutuhkan pengetahuan tidak hanya dari komponen PCB dan perakitan, tetapi juga dari dicetak desain papan sirkuit, fabrikasi PCB dan pemahaman yang kuat dari produk akhir. Perakitan papan sirkuit adalah hanya satu bagian dari teka-teki untuk memberikan produk yang sempurna pertama kalinya.
San Francisco Sirkuit merupakan solusi satu atap untuk semua layanan papan sirkuit sehingga kita sering bercokol dengan proses produksi PCB dari desain untuk perakitan. Melalui jaringan yang kuat kami perakitan sirkuit dan manufaktur mitra yang telah terbukti, kami dapat memberikan kemampuan yang paling canggih dan hampir tak terbatas untuk prototipe atau produksi aplikasi PCB Anda. Menyelamatkan diri sendiri kesulitan yang datang dengan proses pengadaan dan berurusan dengan vendor beberapa komponen. Ahli kami akan menemukan Anda bagian terbaik untuk produk akhir Anda.

PCB Assembly Layanan:

Perakitan prototipe cepat-turn
Turn-key perakitan
Parsial perakitan turn-key
perakitan konsinyasi
RoHS compliant perakitan bebas timah
Non-RoHS perakitan

coating konformal
Akhir kotak-membangun dan kemasan

Proses PCB Majelis

Pengeboran ----- Paparan ----- Plating ----- Etaching & melucuti ----- Punching ----- Uji Listrik ----- SMT ----- gelombang solder --- --Assembling ----- ICT ----- Fungsi Pengujian ----- Suhu & Kelembaban Pengujian

Layanan pengujian

X-Ray (2-D dan 3-D)
BGA X-Ray Inspeksi
AOI Testing (Automated Optical Inspection)
Pengujian ICT (In-Circuit Testing)
Fungsional Pengujian (di papan & sistem level)
terbang Probe

kemampuan

Permukaan Gunung Teknologi / Suku Cadang (SMT Majelis)
Melalui-Hole Perangkat / Parts (THD)
Campuran Parts: SMT & THD perakitan
BGA / Micro BGA / uBGA
QFN, POP & timah kurang chip
2800 pin-count BGA
0201/1005 komponen pasif
0,3 / 0,4 pitch
PoP Paket
Flip-chip di bawah-diisi CCGA
BGA Interposer / Stack-up
dan banyak lagi ...

Professional PCB Board Fabrication , Flexible Printed Circuit Board for LED Bulb

Name: Professional PCB Board Fabrication , Flexible Printed Circuit Board for LED Bulb
Brand: JHD PCB
SKU: JHD-LPA-14012
Price: 0.1 USD
Availability: InStock
Rating: 5 (135 reviews)

Gambar besar : Professional PCB Board Fabrication , Flexible Printed Circuit Board for LED Bulb

Detail produk:

Place of Origin:	China
Nama merek:	JHD PCB
Sertifikasi:	UL,RoHs,SGS,ISO9001-2008
Model Number:	JHD-TA-5790

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1000pcs
Harga:	US$0.1-US$4.99
Packaging Details:	Vacuum in Carton
Delivery Time:	7-10 days
Payment Terms:	T/T, Western Union
Supply Ability:	30000 square meters per month

Kontak

Detil Deskripsi produk

Menyoroti:

led pcba

custom pcb assembly

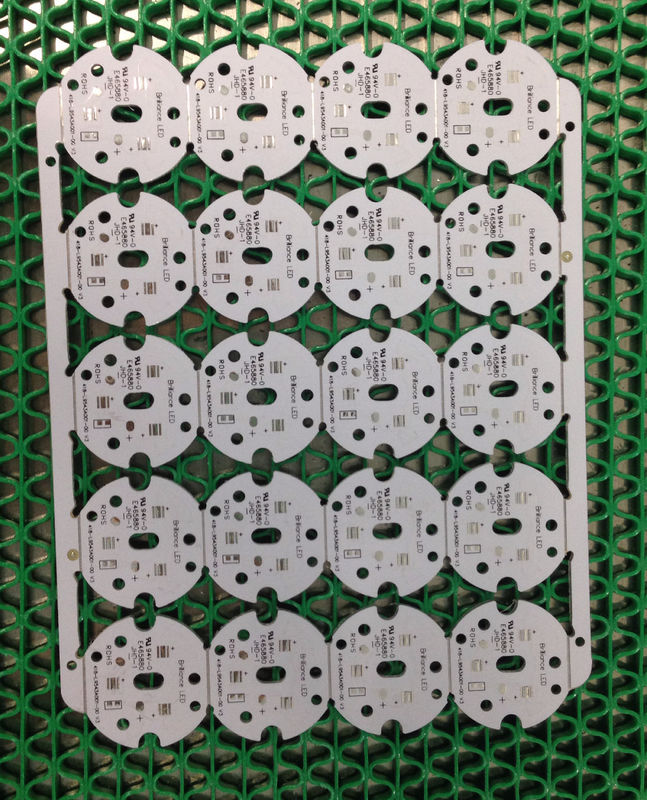

Professional PCB Board Fabrication , Flexible Printed Circuit Board for LED Bulb

Quick Details

Place of Origin:	Guangdong, China (Mainland)	Brand Name:	semshine	Model Number:	SPCB-700 aluminum pcb
Base Material:	aluminum	Copper Thickness:	1 oz	Board Thickness:	2.0mm
Min. Hole Size:	0.3mm	Min. Line Width:	0.15mm	Min. Line Spacing:	0.15mm
Surface Finishing:	HASL	sloder mask:	white	Board Thickness Tolerance:	+/-10%
V-cut angle:	25° 30° 45° 60°	Twist&Wrap:	≤ 0.5%	File:	Protel 99se P-CAD Autocad Cam350
Inner packing:	Vacuum packing,Plastic bag for aluminum pcb	Outer packing:	Standard carton packing for aluminum pcb	Service:	PCB and PCBA
Layer:	single sided	silk mask:	balck

Packaging & Delivery

Packaging Details:	Inner packing: Vacuum packing,plastic bag for aluminum pcb Outer packing: Standard carton packing for aluminum pcb
Delivery Detail:	6-15 days

Welcome To Semshine

- Electronics manufacturing aluminum pcb, aluminum pcb board, aluminum pcb for LED with white solder mask ink

- One stop PCBA service, from components purchasing, PCB production, assembly, testing
- PCB Design & Assembly

- Provide Prototyping

- SMT&PCBA one-stop source

- Quick-turn produce

Specification of PCB Manufacturing

1	Description	PCB Specification
2	Material	FR-4/HTG150-180 FR-4/CEM-1/CEM-3/Aluminum
3	Layer	1-20
4	Board Thickness	0.2mm- 4.0mm
5	Board Thickness Tolerance	+/-10%
6	Copper thickness	17.5um-175um (0.5oz-5oz)
7	Min Trace Width	0.15mm
8	Min Space Width	0.15mm
9	Min Drilling Dia	0.2mm
10	PTH copper thickness	0.4-2mil(10-50um)
11	Tolerance of Etching	±1mil(±25um)
12	V-cut angle	25°,30°,45°,60°
13	Pearl Strength of line	≥ 6lb/in(≥ 107g/mm)
14	Impedance control and tolerance	50Ω±10%
15	Twist&Wrap	≤ 0.5%
16	Soldermask	Green, Red, Blue, White, Black, Yellow
17	Surface Finish/Plating	HASL/Lead Free HASL/OSP/Gold Plating/Immersion Gold/ENIG
18	Certificate	ROSH. ISO9001,UL Certificate
19	File	Protel 99se/P-CAD/Autocad/Cam350
20	Inner packing	Vacuum packing,Plastic bag
21	Outer packing	Standard carton packing

Detailed Terms for Pcb Assembly

1	Quantity	Prototype&Low Volume PCB Assembly,from 1 Board to 250, is for specialty,but we can handle orders up to 1000
2	Type of Assembly	SMT and Thru-hole
3	Solder Type	Water Soluble Solder Paste,Leaded and Lead-Free
4	Components	Passives Down to 0201 Size BGA and VFBGA Leadless Chip Carries/CSP Double-Sided SMT Assembly Fine Pitch to 08 Mils BGA Repair and Reball Part Removal and Replacement-Same Day Service
5	Bare Board Size	Smallest:0.25x0.25 Inches Largest:20x20 Inches
6	File Formats	Bill of Materials Gerber Files Pick-N-Place File(XYRS)
7	Type of Service	Turn-Key,Partial Turn-Key or Consignment
8	Component Packaging	Cut Tape Tube Reels Loose Parts
9	Turn Time	Same Day Service to 15 day service
10	Testing	Flying Probe test XRAY Inspection AOI Test

PCB or PCB Assembly files requests

1. Gerber files of the bare PCB board
2. BOM (Bill of material) for assembly
To short the lead time, please kindly advise us if there is any acceptable components substitution.
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary

Our Advantage

1.Our professional engineer can provide PCB design, BOM.

2.Quick and econimic delivery term.

3.Provide PCB & PCBA prototype, and medium&low volumn quick board services.

4.Component purcharsing, SMT&PCBA one-stop source.

5.Two-hours quote response, 24 hours quick-turn produce.

6.FR4 Double-sided and Alum single-sided sample in 24 hours.

Lead Time

Samples: 3-4 days

Mass Production: 7-15 days(depend on the quantity)

Payment Terms

T/T,Western Union

Purchase Tips

a. If you want to purchase our PCB, you should provide a formal Gerber files or *.pcb file or something like that.
b. If you want to purchase by large quantity, please ask Mr.Hank.
c. If you want to purchase the PCBA, you should provide the Gerber files, *.pcb file , BOM list etc.
d. If you want to reproduce some exsited PCB board for you, please first provide very clear pictures , then if you are satisfied with our estimate quotation, then send us the real thing, so we can clone it for you.
e. If none of the above can help you, please contact us directly by Skype, QQ or Email. We are very glad to answer the questions you ask, your satisfaction is our final destination.
